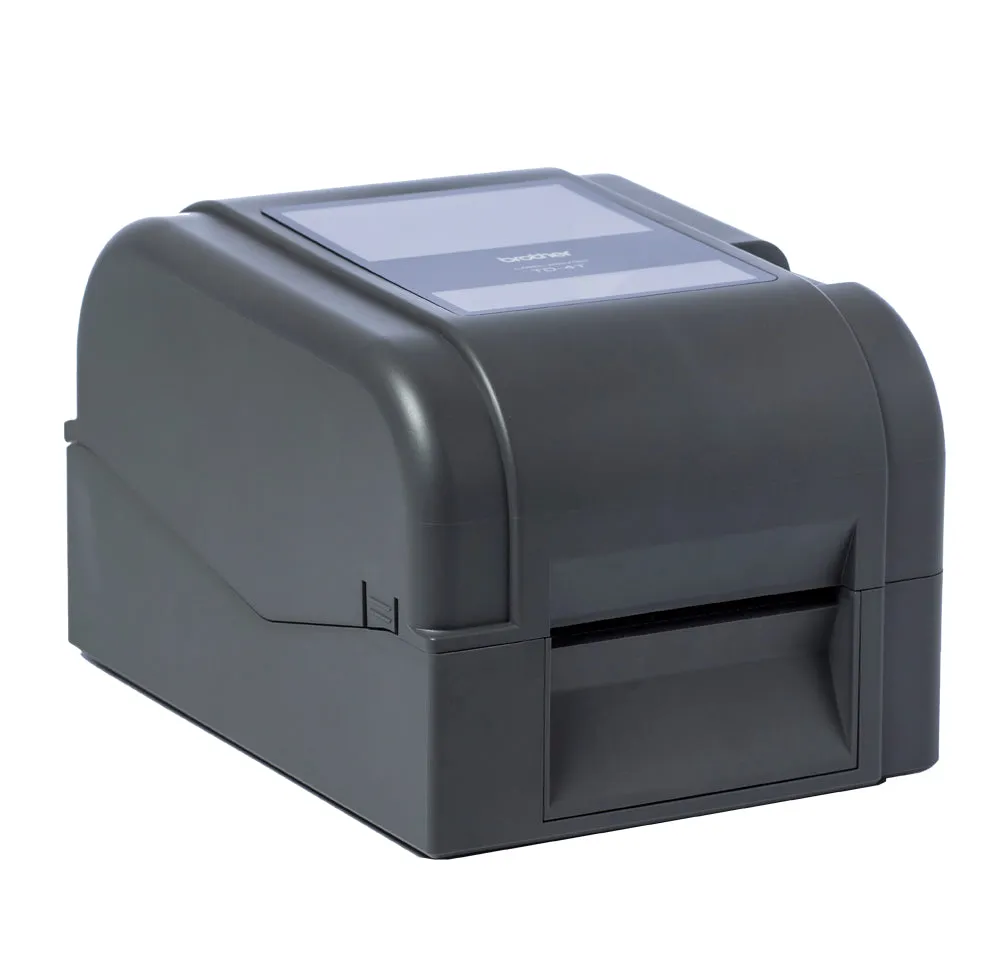

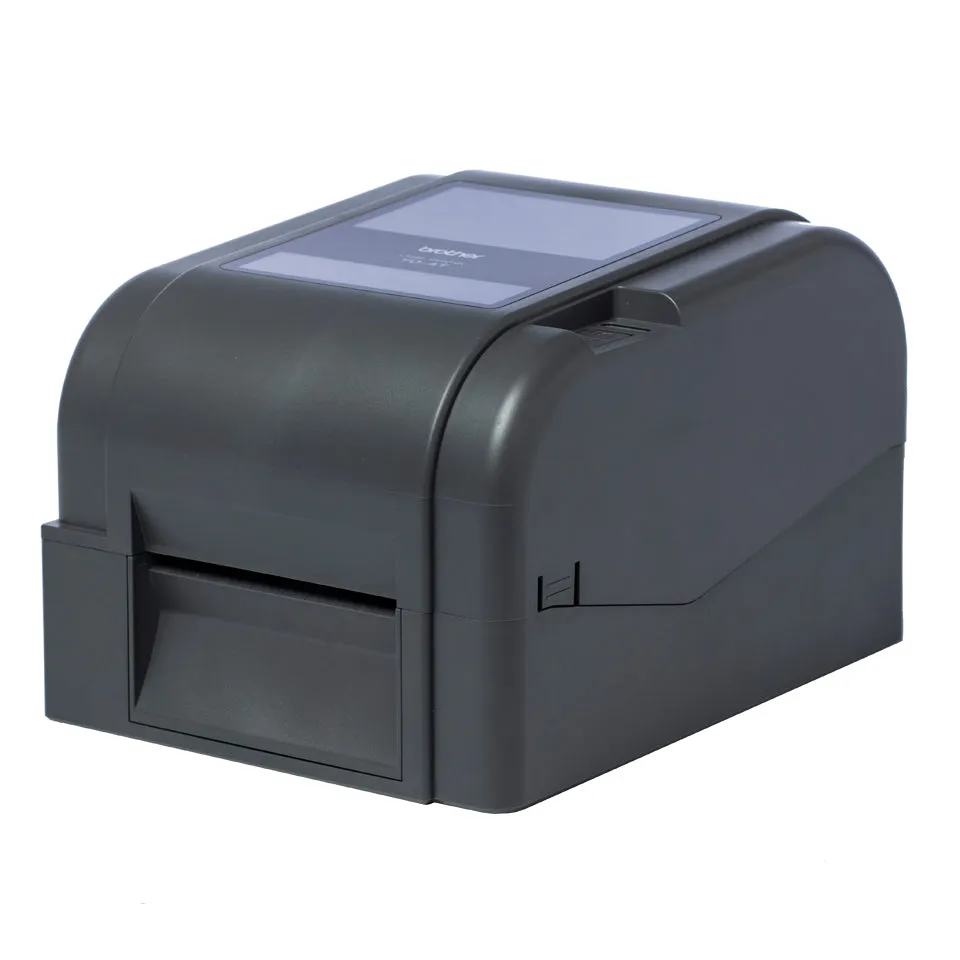

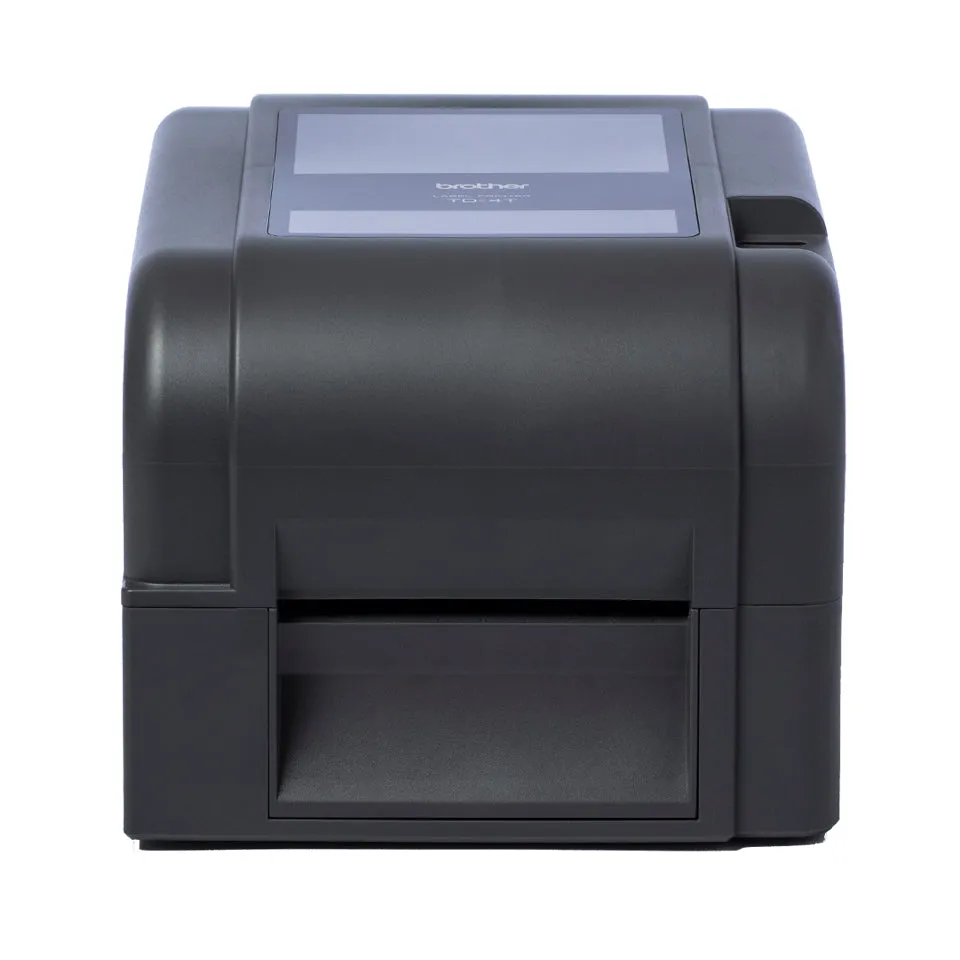

Brother TD-4420TN Desktop Network Thermal Printer- TD4420TN
TD-4420TN Brother
Specification
| Specification: | |
|---|---|
General Information |
|
|
Product Condition:
|
Brand New
|
|
Manufacturer:
|
Brother
|
|
Model Name:
|
TD4420TN
|
|
Manufacturer Part:
|
TD-4420TN
|
|
Product Name:
|
Brother TD-4420TN Desktop Network Thermal Printer
|
|
Housing Color:
|
Black
|
Hardware Features |
|
|
Model Type:
|
4.3" Desktop Direct Thermal Printer
|
|
Connectivity Technology:
|
Wired
|
|
Connectivity Technology:
|
USB, LAN Ethernet
|
|
Media Exit Features:
|
Tear Up, Peeler, Cutter
|
|
Media Feed Features:
|
Drop In Roll, Adjustable Roll Holder, External Slot
|
|
Display:
|
None
|
Printing Features |
|
|
Printing Method:
|
Direct Thermal
|
|
Maximum Print Resolution:
|
203 dpi
|
|
Maximum Print Width:
|
4.25" (108mm)
|
|
Print Commands:
|
ZPL II, CPCL, Raster Graphics, Text (Template) ESC P
|
|
Bitmap Fonts:
|
Helsinki, Brussels, Letter Gothic, Gothic
|
|
Stored Templates:
|
Up to 99
|
|
2 Dimensional Barcodes:
|
PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec
|
|
Linear Barcodes:
|
Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI/Plessey, Industrial 2/5, Codabar (NW-7), POSTNET
|
|
Consumable Types:
|
Receipts, Labels, Tags, Wristbands
|
|
Consumable Thickness:
|
2.36mil to 7.48mil (0.06mm to 0.19mm)
|
|
Consumable Format:
|
Fanfold Media, Roll with Continuous Media, Roll with Perforated Media, Roll with Die Cut Media
|
|
Media Width:
|
4.65" (118mm)
|
|
Maximum Roll Diameter:
|
0.50"
|
|
Media Sensor Types:
|
Transmissive (Gap, Hole), Reflective (Adjustable Position Black Bar, Hole), Out of Paper
|
Memory |
|
|
Available Memory:
|
Flash: 64MB Flash
Internal: 256MB SDRAM |
Compatibility |
|
|
Supported Operating System:
|
Windows 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit), Windows Vista (32/64bit), Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Mac OS X 10.10.x or later, Linux Red Hat and Debian
|
|
Print Driver Compatibility:
|
Windows, Mac, Linux
|
Interfaces |
|
|
Wi-Fi Standards:
|
None
|
|
Bluetooth:
|
None
|
|
Ethernet LAN Port:
|
1 x Ethernet LAN (10/100Base-TX)
|
|
RS-232C Serial Port:
|
1
|
|
USB 2.0 ports:
|
2
|
Power |
|
|
Power Supply:
|
24VDC 2.5A
|
Dimensions & weights |
|
|
Unit Dimensions:
|
8.1" x 7.0" x 11.1"
|
|
Housing Weight (lbs):
|
4.4 lbs
|
Carton Contents |
|
|
Included Items:
|
Brother TD-4420TN Desktop Network Thermal Printer
USB Cable AC Adapter Power Cable Printed Guides Software |
